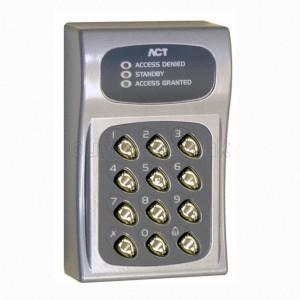

ACT10 Keypad with 10 User Codes

The ACT 10 is a versatile, user-friendly, and stylish control access digital keypad. Its sleek light silver grey and black shell comes with a green illuminated backlighting that allows for great functionality even in low lighting conditions.

One can get their money’s worth with this product as it can last for years with its sturdy and durable component made up of vandal resistant die-cast zinc with backlit stainless steel keys. Aside from access control, the keypad also features door monitoring and interlock applications.

It is one of the most sought after product in the market today for its powerful features including its programmability of up to 10 user codes, functionality for both indoor and outdoor use, and surface and flush mounting.

The ACT 10 requires an operating voltage of 12 to 24 volts AC or DC. For full functionality, it is advisable to use 12 volts DC supply.

Signature Features:

• 10 User Codes
• Easy Programmability
• Two Doors, Two User Groups
• Interlock
• Fire Alarm Input
• Door Monitoring
• Indoor or Outdoor Installation
• Surface or Flush Mount Options
• Zinc Die-Cast Housing
• Stainless Steel Keys
• Front and Back Tamper
• Backlit Keypad

Specifications:

Operating Voltage: 12 to 24 Volts AC or DC

Current Consumption: 40mA (nominal) - 120mA (max)

Operating Temperature: -10 to +50 degrees °C

Door Open Time (s): 0 - 255 seconds

Relay Contact Rating: 2 x 5 Amp, 30 Volt DC Relays

Driver Output: 2 x 100 mA Darlington Driver

Dimensions (H x W x D, mm): 138 x 87 x 37

Weight (g): 700

IP Rating: 54
