BILL
Beninca

BILL

Sale price £167.30 Regular price £690.00

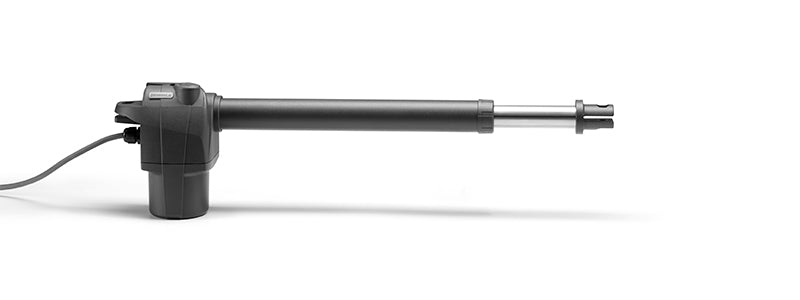

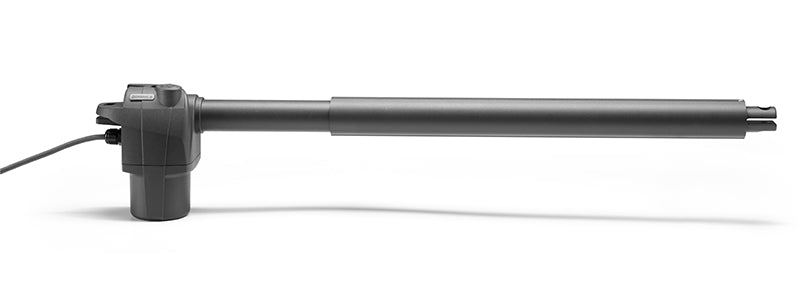

The Beninca Bill is an electromechanical, irreversible geared telescopic post-mounted ram. It is the ideal entry level telescopic ram that comes with the HEADY control panel. It has different variants depending on your needs. This includes:

  • 230Vac Telescopic Ram for gate leafs up to 3 metres – Pair Kit
    (Kit Code: KBILL30M)
  • 230Vac Telescopic Ram for gate leafs up to 5 metres – Pair Kit
    (Kit Code: KBILL50M)
  • 230Vac Telescopic Ram for gate leafs up to 3 metres – Single Kit
    (Kit Code: KSBILL30M)
  • 30Vac Telescopic Ram for gate leafs up to 5 metres – Single Kit
    (Kit Code: KSBILL50M)
  • 230Vac Telescopic Ram for gate leafs up to 3 metres – RAM Only
    (Kit Code: BILL30M)
  • 230Vac Telescopic Ram for gate leafs up to 5 metres – RAM Only
    (Kit Code: BILL50M)

The standard HEADY units come with a step-by-step input, electronic force adjustment, diagnostic LCD display, built-in 433.93 Mhz radio receiver, fixed slow-down function, and electromechanical or hydraulic motors. The good thing about this ram is its upgradability to a full feature BRAINY control panel.

The Beninca BILL comes with the following accessories:

  • 1 x Control Panel
  • 1 x Pair of Pupilla Photocells
  • 1 x AW 433.92Mhz Aerial
  • 2 x TO.GO 2 Button Transmitters (Rolling Code or Dip Switch)
  • 1 x Beninc UK Customer Handover Pack

Specifications:

  • Automation Type: Swing
  • Gate Leaf Length (M): 3 and 5
  • Working Temperature (°C Min/Max): -20°C/+50°C)
  • Capacitor(µF): 10
  • Lubrication: Permanent Grease
  • Noise Level (dB): <70
  • Protection Level (IP): 54
  • Thrust (daN): 3200

Note:
Due to low interest for the 24V version of the BILL operators, the products were withdrawn from our main product line. While we do hold a small stock of products, they are already discontinued at our Italy headquarters.
