BOB

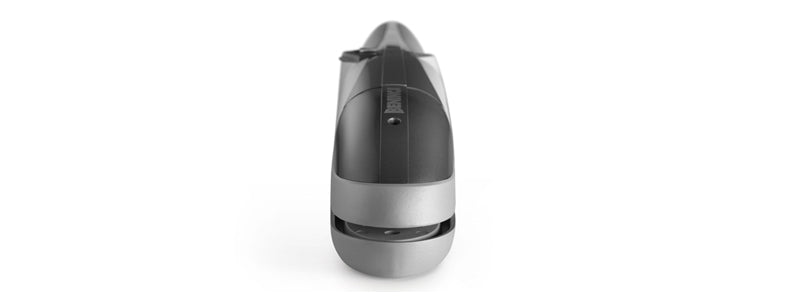

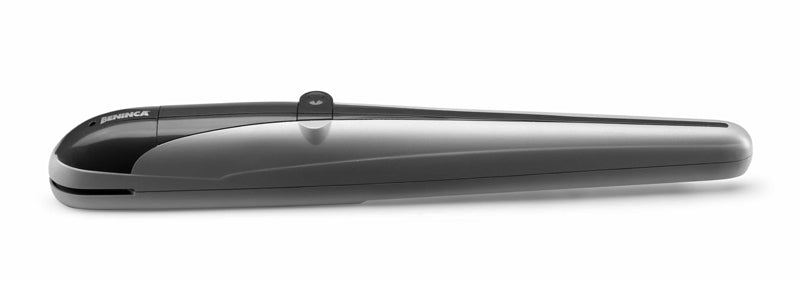

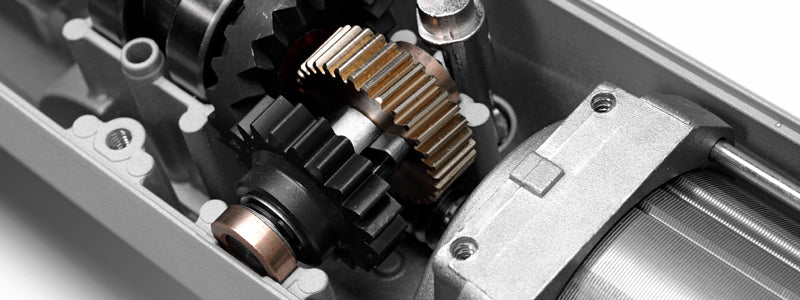

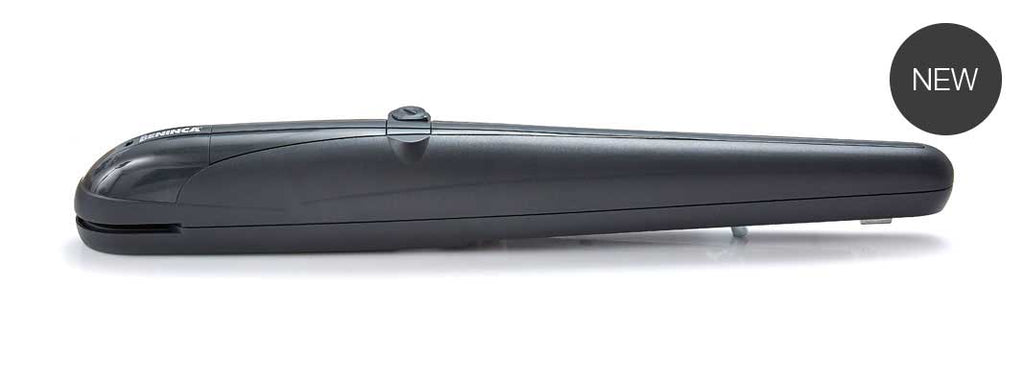

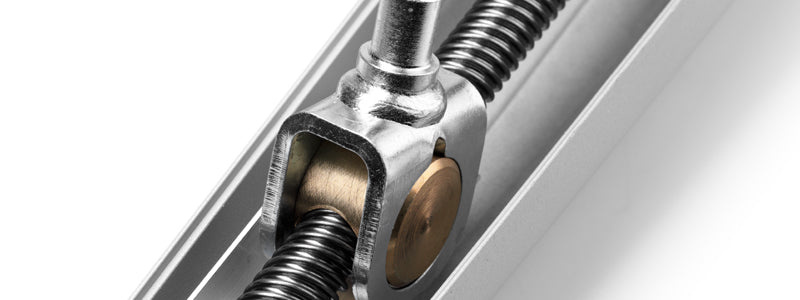

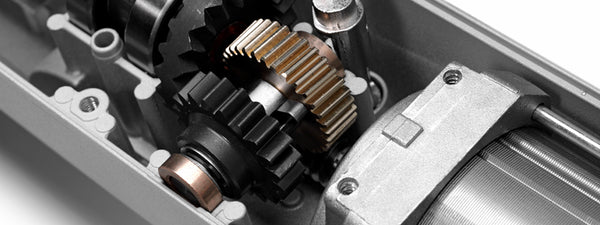

The Beninca BOB is a self-locking electro-mechanical heavy-duty intensive usage system that comes with an irreversible geared worm drive post mounted ram with built-in stops. The Beninca BOB system is ideal for palisade steel gates, close boarded wooden gates, and large wrought iron gates. It is one of the most sought after gate operators that comes in a wide range of variations that can address all your swing gate requirements.
Product variations are as follows:
- 230Vac Worm Drive Ram for gate leafs up to 2.1m – Built-In Stops
(Kit Code: BOB 21ME) - 24Vdc Worm Drive Ram for gate leafs up to 2.1m – Built-In Stops
(Kit Code: BOB 2124E) - 230Vac Worm Drive Ram for gate leafs up to 3m – Built-In Stops
(Kit Code: BOB 30ME) - 24Vdc Worm Drive Ram for gate leafs up to 3m – Built-In Stops
(Kit Code: BOB 3024E) - 230Vac Worm Drive Ram for gate leafs up to 5m – Built-In Stops
(Kit Code: BOB 50ME) - 24Vdc Worm Drive Ram for gate leafs up to 5m – Built-In Stops
(Kit Code: BOB 5024E)
Note that the both the BOB21 & BOB30 kits are supplied with the full feature BRAINY control panel.
The Beninca BOB Brainy units features a step-by-step input, electronic force adjustments, diagnostic LCD display, and built-in 433.93Mhz radio receiver. It also comes equipped with a separate encoder inputs for each motor, separate slow down during opening and closing of each motor, 8.2Kohm safety edge input with a wire directed into the board, and a maglock/lock output.
The Beninca BOB post-mounted rams comes with the following accessories and inclusions:
- 1 x BRAINY Control Panel
- 1 x Pair of PUPILLA Photocells
- 1 x AW 433.92 Long Range Aerial
- 2x TO.GO 2 Button Transmitters (Rolling or Dip Switch)
- 1 x Beninca UK Customer Handover Pack
Specifications:
- Automation Type: Ram
- Kit Type: Double
- Gate Leaf Length (M): 5
- Maximum Gate Weight (in kg): 600
- Capacitor(µF): 9
- Lubrication: Permanent Grease
- Working Temperature (°C Min/Max): -20°C/+50°C)
- Noise Level (dB): <70
- Protection Level (IP): 54
- Thrust (daN): 3500
