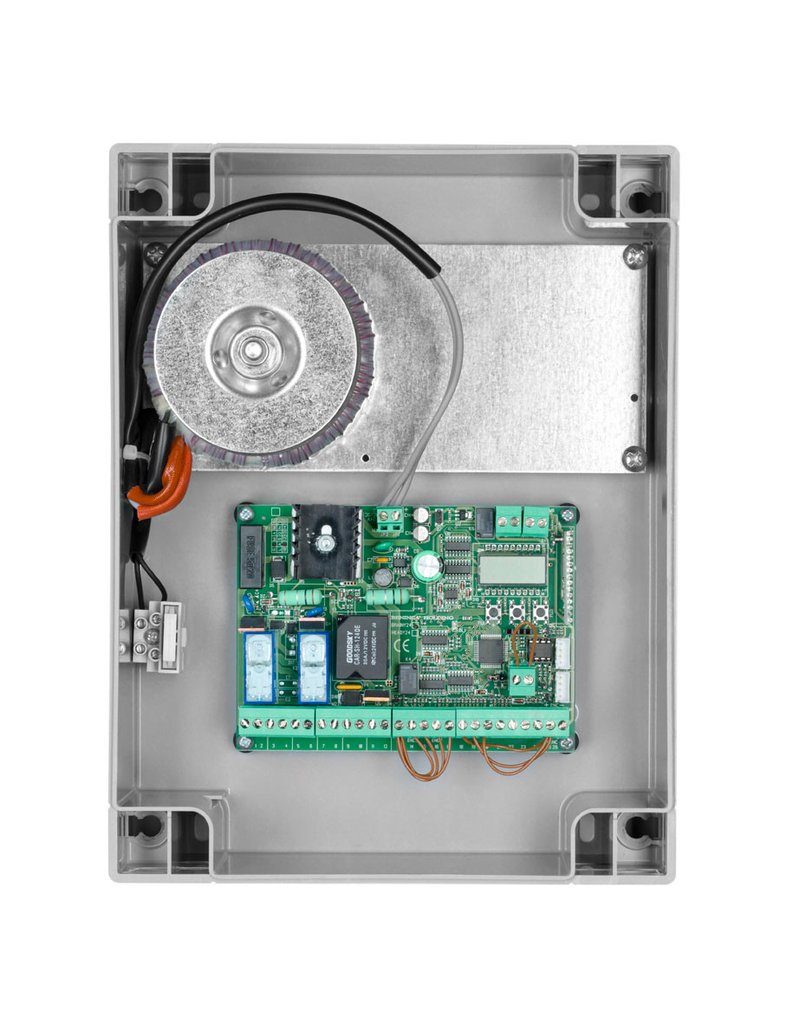

BRAINY 24

The Beninca BRAINY 24 is a control panel for 1 or 2 motors that uses the 24Vdc power supply. Through this, it is able to operate swinging or sliding gates. It also has this unique feature of being operable with the KSUN solar kit.

The easy to install and use control panel features a built-in display, anti-crushing safety function with its amperometric sensor, removable terminal boards, and presetting for serial control auxiliary cards. It also comes with a built-in 433.92 MHz radio receiver that can hold up to 64-codes that are either programmable or variable.

Signature Features:

• Easy Installation
• Anti-Crushing Safety Function
• Operating Logics
• Self-Configuration of Operating Parameters
• Separate Slowing Down Function for Each Motor during Opening and Closure
• Removal Terminal Boards/Blocks
• Built-In 433.92 MHz 64-Code Radio Receiver (Programmable/Variable Code)
• Output for 12Vac/dc Electric Lock Control
• Electronic Adjustment of Torque and Operating Times for Each Motor
• Separate Limit Switch Inputs for Each Motor During Opening and Closing
• Input for 8K2 Safety Sensitive Edge
• Input for Single-Step, Pedestrian and Stop Buttons
• Presetting for Serial Controls Auxiliary Card
• Applicable for Hydraulic Operators
• Possibility of Viewing the Actual Number of Manoeuvres
• Programming Access Password
• Operational with KSUN Solar Kit

Specifications:

Control Unit Supply: 24Vdc

Power Supply: 230 Vac 50/60Hz

Maximum Motor Current: 5+5 A

Output Supply of Accessories: 24Vdc 500mA Max

Protection Level: IP55

Operating Temperature: -20°C to +60°C

Radio Receiver: 433,92 MHz, configurable (Rolling Code or Programmable Code + Rolling Code)
