DU.350 N
Beninca

DU.350 N

Sale price £332.50 Regular price £1,558.50

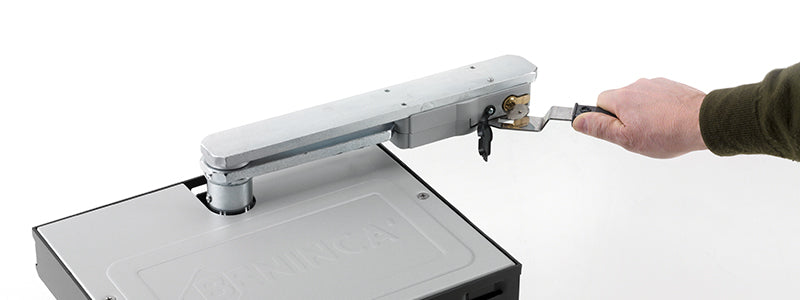

The Beninca DU.350 N is an oil-lubricated 230Vac swing gate motor for underground installation. It can automate swing gates leafs up to 4 metres. The motor also has the power to open gates up to 180 degrees when installed with a DU180N chain to the original configuration. The heavy duty electro-mechanical operator is able to move oversized components. It is sealed in a box while fully submerged in an oil bath that allows the high torque motor to have for maximal cooling and lubrication needed to swing gates weighing 500 kgs to open up to 4 metres.

Product variations are as follows:

  • 230Vac Swing Gate Motor for up to 3.0 metres (Kit Code: DU.35ONVE)
  • 230Vac Swing Gate Motor for up to 4.0 metres (Kit Code: DU.350NGE)

The Beninca DU.350 N heavy duty kit comes with the following inclusions:

  • 2 x DU.350 Underground Operators
  • 2 x Foundation Boxes
  • 2 x Mechanical Stops
  • 2 x Manual Release Mechanism
  • 1 x BRAINY Control Panel
  • 1 x PUPILLA Photocells
  • 1 x AW 433.92Mhz Long Range Aerial
  • 2 x TO.GO2WV 2 Button Transmitters

Specifications:

  • Automation Type: Underground
  • Kit Type: Double
  • Torque (Nm): 450
  • Gate Leaf Length (M): 3 and 4
  • Maximum Gate Weight (in kg): 500
  • Capacitor(µF): 12.5
  • Lubrication: AGIP Blasia 32
  • Working Temperature (°C Min/Max): -20°C/+50°C)
  • Noise Level (dB): <70
  • Operating Time at 90°: 18 s
  • Protection Level (IP): 67
