FTC.S Photocells

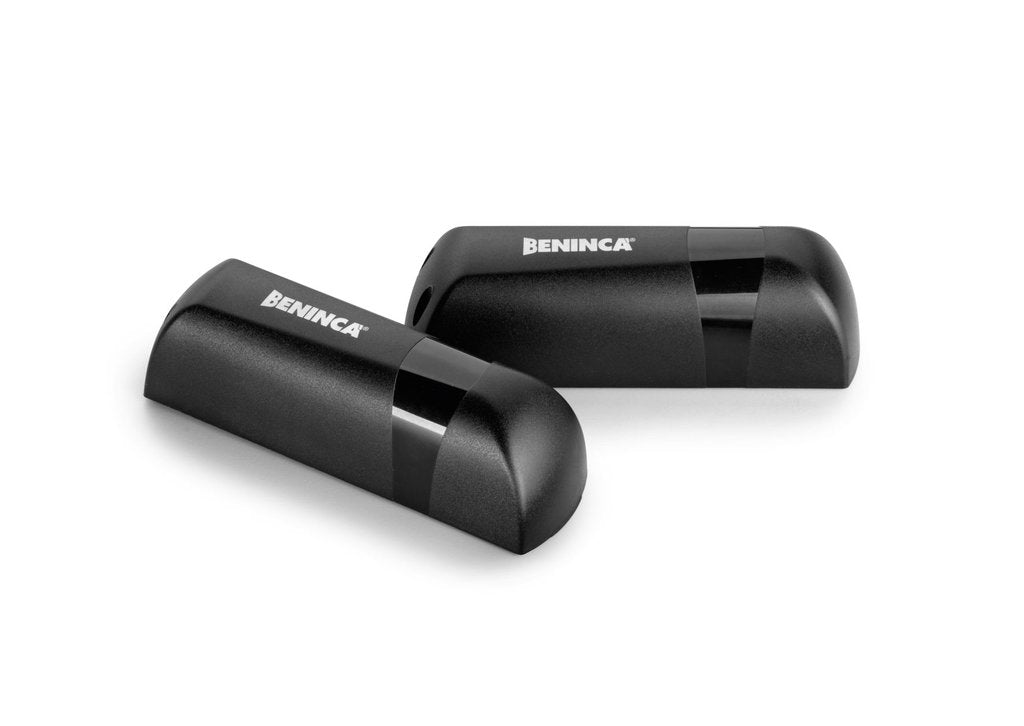

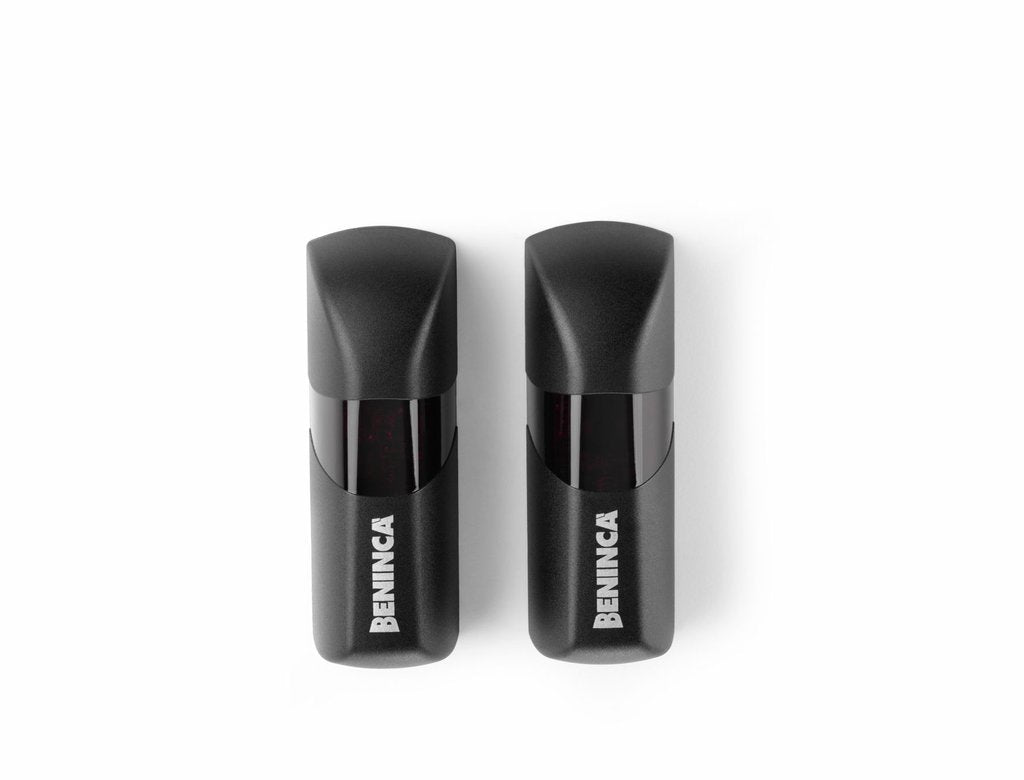

The Beninca FTC.S  are a pair of fixed lens surface mounted photocells that uses 24Vac/dc power supply. It is used as light detecting sensors that automate gates and various road barriers. It is an ideal sensor as they are small, affordable, easy to install, uses low voltage, and are heavy duty.

These particular model is suitable for gate automation with distance of up to 20 to 25 metres. They also have the ability to synchronise up to 4 sets of photocells. These photocells are ideal for use for the photocell slot of:

• Beninca BISON Heavy Duty Sliding Gate Motors
• Beninca EVA Barriers
• COL05N Aluminum Columns
• COL10N Aluminum Columns
• COL12N Aluminum Columns

Specifications:

Voltage Failure: 12 to 24V AC or DC

IP Rating: 44

Operating Temperature: -20 °C to +70 °C

Dimensions (H x W x D, mm): 90 x 75 x 30
