HYDRA

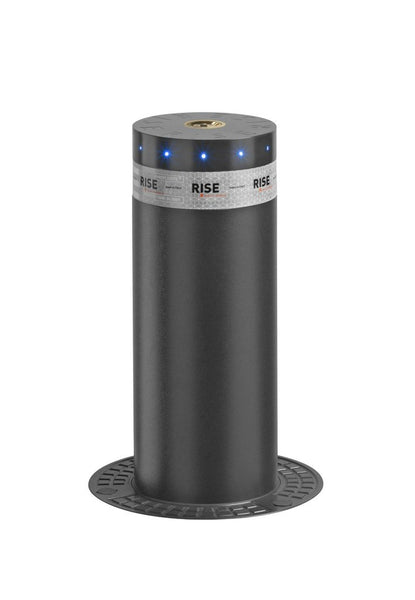

The Beninca Rise HYDRA is an automatic hydraulic bollard that uses foundation cases and can be easily installed on site without welding.

HYDRA kit includes foundation case, control panel with built-in receiver and a 10m cable.

The HYDRA is available in the following variants:

Beninca Rise Hydra Single Bollard Black

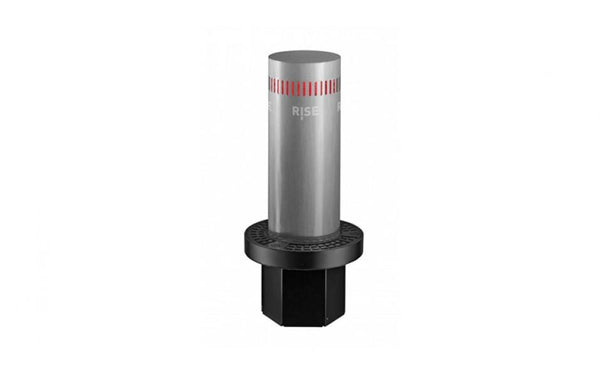

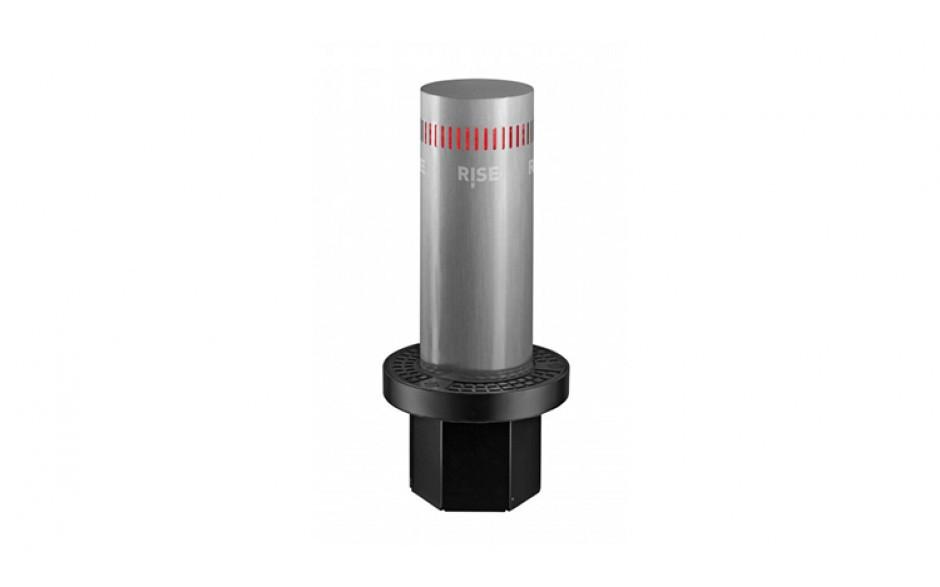

Beninca Rise Hydra Single Bollard Stainless Steel

Beninca Rise Hydra Bollard Kit Black

Beninca Rise Hydra Bollard Kit Stainless Steel

The Beninca Rise HYDRA comes with:

• 1 x Foundation case
• 1 x Control Panel with built-in receiver
• 1 x 10m cable

Specifications:

• Power Supply: 230Vac 50/60 Hz
• Absorbed Current 24 Vdc: 8 a max
• Standby Consumption: 10 W
• Pump Delivery: 1.5l/min
• Max. Oil Pressure: 20 bar
• Overload Cut-Out: 150°C
• Maximum Working Frequency (With HY.CELL2): 750 cycles/day
• Protection Level: IP68
• Operating Temperature: -15°C/+70°C
• Capacitor (μF): 31,5
• Impact Resistance: 11.000 J
• Breakout Resistance: 180.000 J
• Km Vehicle-km/hour: 1.800 - 55
• Raising Time 120 mm/sec: 5s
• Lowering Time 160 mm/sec: 5s
• Oil: BIO OIL
• Weight (Without foundation case): 79/81 kg
