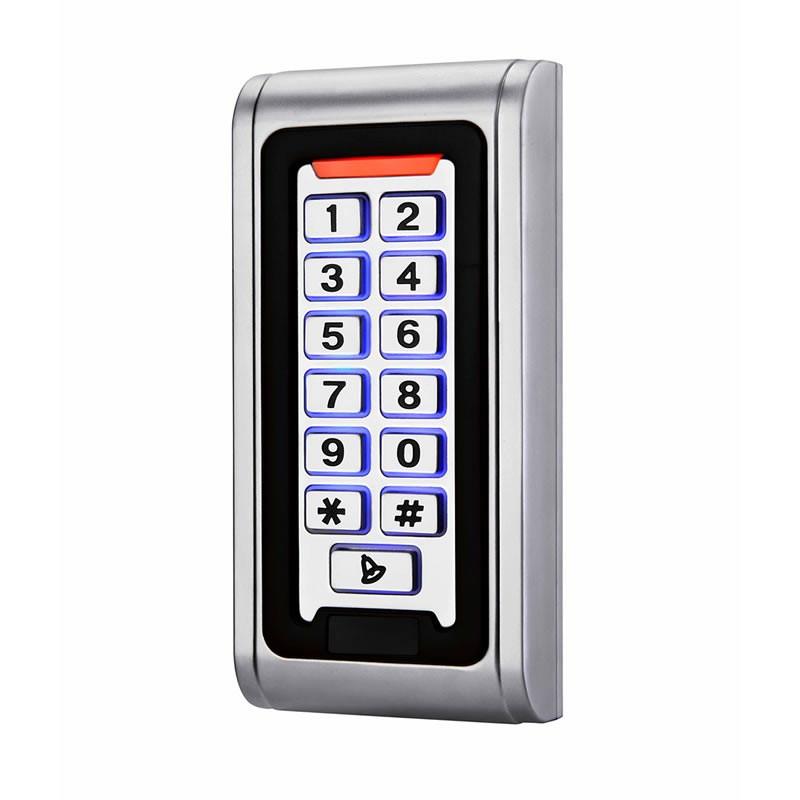

MF 1000 Keypad

The MF 1000 keypad is a standalone vandal resistant and weatherproof MF reader keypad equipped with a programmable relay. Manufactured by Specialized Security Products, it is an easy to use keypad that can be operated with PIN codes or MF cards and tags/fobs. Aside from being used as a coded keypad for 2,000 users, the keypad can also be used as a token-based proximity system, which can also accommodate up to 2,000 users.

This dual purpose door access control system has a sleek and narrow design ideal for installation in restricted spaces. It is also made with a die-cast metal casing ensuring usability for years.

It also has an illuminated keypad that allows its full functionality even when there is low lighting. All of the tags, cards, and codes are readily validated and deleted by a secure 6-digit password. The MF 1000 also comes with a Wiegand access controller output interface.

Signature Features:

• Up to 2,000 Different Users
• Uses MF Cards and Tag/Fobs
• PIN or Card/Fob Operation
• Illuminated Keypad (Blue)
• Vandal Resistant
• Weatherproof with an IP68 Rating
• Tamper Alarm
• LED Status Indicator
• Standalone Relay Output
• Alarm for “Door Left Open”

Specifications:

Voltage: 12Vdc

Current Draw: 80 mA

Relay: Load Current 3A Max

Opening Time (s): 1-99

Dimensions (H x W x D, mm): 120 x 56 x 18

IP Rating: 68
