Stainless Steel External Maglock
Auto Gate Shop

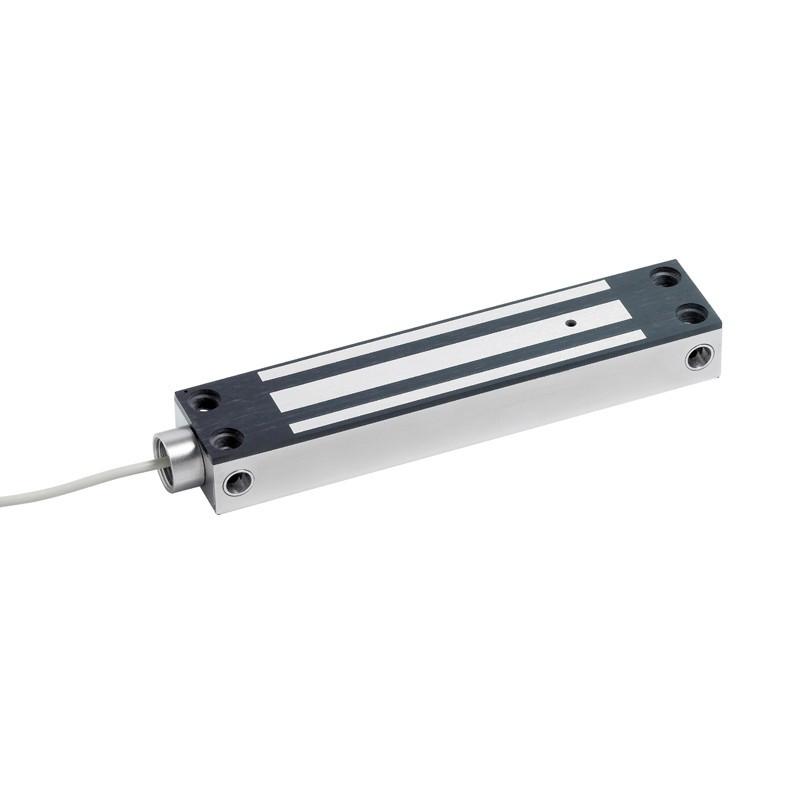

Stainless Steel External Maglock

Sale price £85.00 Regular price £99.00

The S.S.P Stainless Steel External Maglock is a locking device that consists electromagnet and an armarture plate. It is suitable for outdoor gates due to its weatherproof construction and attachment for connection to conduit, suitable for 12V or 24VDC operation.

This Maglock can contain a holding force of upto 545 kg (1,200 lbs), ideal for pedestrian and automatic gates. It compares well with that of conventional door locks and they cost less than conventional light bulbs to operate.


  • Stainless Steel Casing
  • Weatherproof
  • Dual Voltage
  • Lock Monitored
  • Anti-Residual Magnetism Feature
  • Fail-Safe (=power to lock)
  • Side and FaceFixings


  • Holding Force: Up to 545 kg (1,200lbs)
  • Fitting: 20mm Male Conduit Fitting
  • Power Supply: 12Vdc Consumption with 500m Amp Current Draw and 24Vdc Consumption with 250m Amp Current Draw
  • Armature Plate Dimension: 185mm(L) x 62mm(W) x 16mm(D)
  • Weight (kg): 5 kg (approx.)
  • Operating Temperature: -10°C to +55°C
  • Monitoring Contacts: SPDT rated 0.25A @ 12Vdc
