VX800NS Keypad

VX800NS Keypad

Sale price £140.00 Regular price £145.00

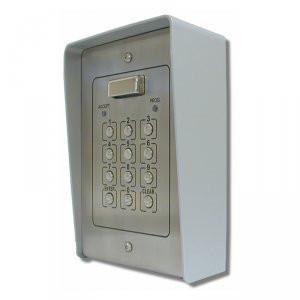

The Videx VX800NS keypad is a surface mount stainless steel access control keypad that features a non-volatile codelock that comes with two codes, two relays, and two push to exit inputs. It has an easily programmable working time relay from 1 up to 99 seconds or for a permanent length of time. Both of its relay can be be triggered by similar user codes, which can range from 4 to 8 digits.

The keypad is made with a high grade stainless steel and is ideal for installation with a rainhood for adverse weather protection. It is also available in a flush version (Code: VC800NF). The keypad is also programmed to provide both an audio (for entry codes) and visual (for call status) feedback for calls. For added security, the keypad also has an additional unique feature of delaying code input in case of incorrect codes.

This particular item is also ideal for retrofitting for any gate automation system as an external entry system.


Facial Material: 12 Gauge 304 Grade Stainless Steel

Number of Codes: 100

Number of Relays: 2 Dry COntact (24V 5A Max)

Inputs: 2 x Push to Exit Inputs for Relay 1 and 2

Code Length: 4 to 8

Voltage: 12 to 24 V AC or DC (2VA)

Programmable Relay Times: 1 to 99 seconds or Latch

Dimensions (H x W x D, mm): 165 x 108 x 60

Operating Temperature: -10 °C to +50 °C

The VX800NS version is now available for only £145.00 the flush version - VX800NF has a price tag of £140.00.
