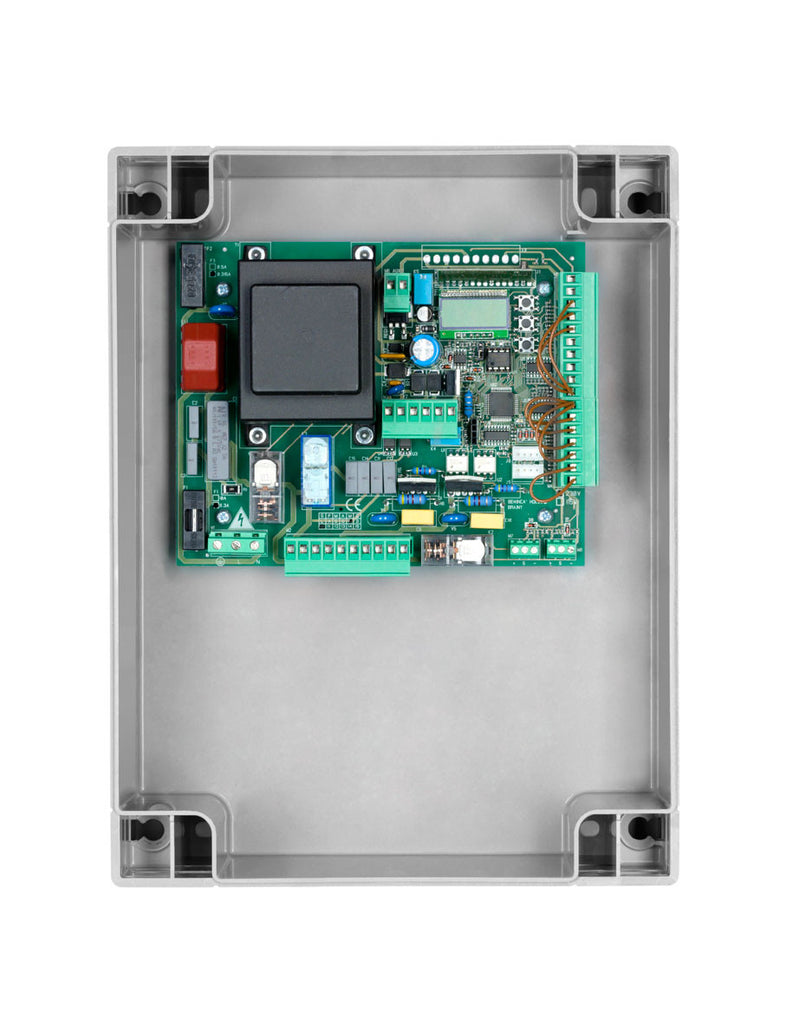

BRAINY
APPLICATION 1 or 2 actuators for swing gates
CONTROL PANEL POWER SUPPLY 230 Vac
CONTROL PANEL POWER SUPPLY 230 Vac
MOTORS POWER SUPPLY 230 Vac 600W + 600W
MAIN FUNCTIONS: • Built-in LCD display • Built-in 433.92 MHz 64 codes and 3 codes radio receiver (programmable code, rolling code, ARC) • Removable terminal blocks • Encoder input for obstruction detection • Separate limit switch inputs for each motor • Open, close and pedestrian inputs • Open-close and close photocell inputs • N.C. or 8K2 safety edge input • Output for 230 Vac and 12 Vac/dc electric lock • Gate open indicator light output, service light, second radio channel and test photocells • Autoset operating parameters with encoder equipped motors • Electronic adjustment of individual couple for each motor and working times • Electronic decelerations • Optional parameter configuration and remote control management using the Advantouch system • Number of manoeuvres • Programming access password • Maintenance reminder
