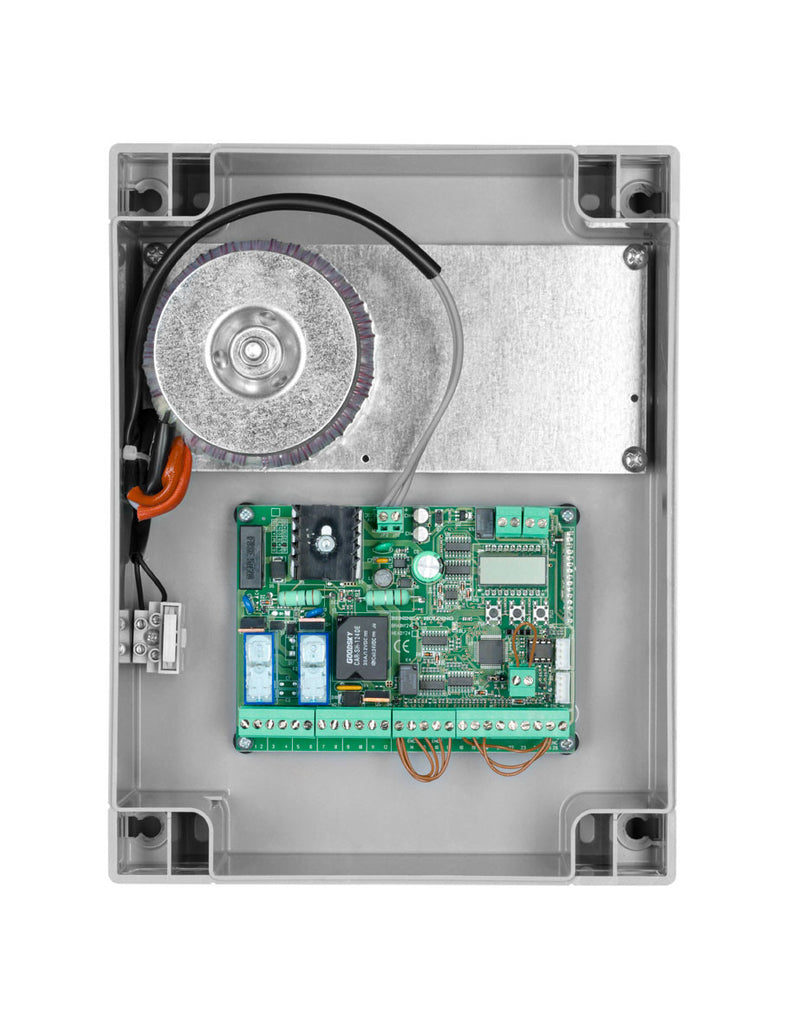

BRAINY 24

APPLICATION 1 or 2 actuators for swing gates, opposing sliding gates, and industrial folding doors with a maximum of 2 sections
CONTROL PANEL POWER SUPPLY 230 Vac
MOTORS POWER SUPPLY 24 Vdc 120W + 120W

MAIN FUNCTIONS: • Built-in LCD display • Built-in 433.92 MHz 64 codes and 3 codes radio receiver (programmable code, rolling code, ARC) • Removable terminal blocks • Separate limit switch inputs for each motor • Open, close and pedestrian inputs • Open-close and close photocell inputs • N.C. or 8K2 safety edge input • 12 Vdc electric lock output • Gate open indicator light output, service light, second radio channel and test photocells • Operating parameters autoset • Electronic adjustment of individual couple for each motor • Crush prevention security with amperometric sensor detection and encoder management • Independent decelerations during open and close for each motor • Optional parameter configuration and remote control management using the Advantouch system • Number of manoeuvres • Programming access password • Maintenance reminder
